Die Casting Machine Automatic Extractor

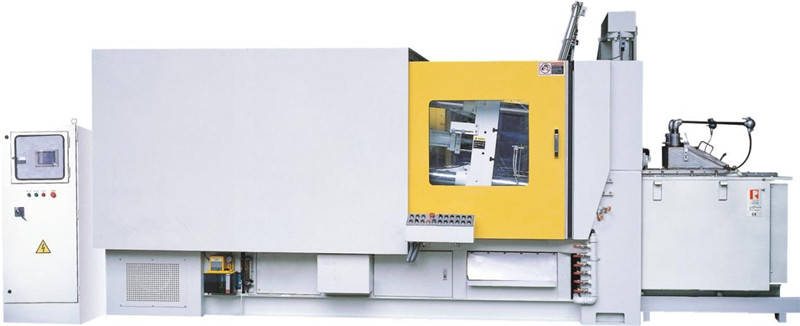

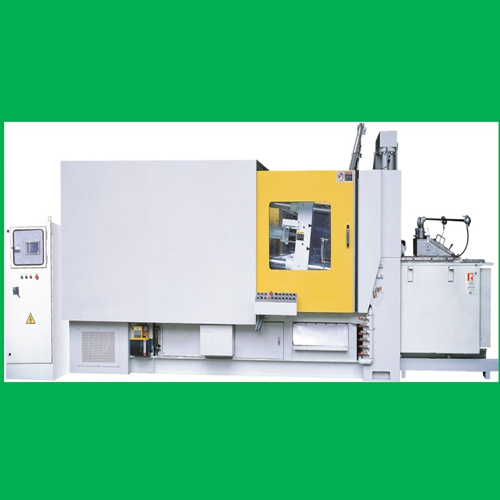

Magnesium Hot Chamber Die Casting Machine

If you have any inquiry,please send email to us directly:
Email:fsweiwei@foxmail.com
Mobile:008613532087643(Mr Newduo)

Description

With the advantage of light weight,anti electromagnetic interference,anti vibration and excellent casting performance,magnesium alloy is recognized as green engineering materials in the 21st century.People from various countries of the world pay more attention to the application.Magnesium alloy has been widely applied to automobile products,3C products,aerospace machine and national defense ect. In order to satisfy customers’ requirement,Weijin has developed serious excellent performance magnesium alloy die casting machines

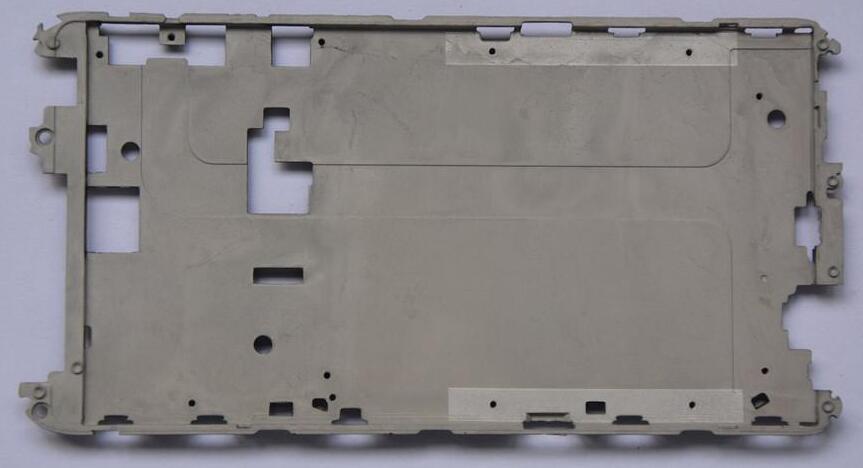

Magnesium Mobile Cover Die Casting Machine.jpg image003.jpg image005.jpg


Magnesium Electromagnetic Induction Furnace


Adopt electromagnetic induction heating method,improves melting efficiency and save energy.


With electromagnetic stirring function,which can reduce alloy element segregation.


Intelligent reactive power compensation device can detect alloy volume and compensate power.


Heating and insulation can automatically switch with pressure losing alarm,which is more safe and stable.


Adopt high quality gooseneck,plunger tip and pluger ring,which could resist high temperature and corrosion,the service life is longer.


DC200T Hot Chamber Magnesium Die Casting Machine Technoligical Date

ITEM

Unit

DC200T

Clamping Force

KN

                              2000

Clamping Stroke

mm

                               400

Ejection Force

KN

                               110

Ejection Stroke

mm

                                100

Die Thickness (Min-Max)

mm

250-550

Platen Size(HxV)

mm

                            740X820

Space Between Tie Bars(W×H)

mm

                            510X510

Tie Bar Diameter

mm

                                 90

Injection Position

mm

0/-100

Injection Stroke

mm

175

Traverse Stroke

KN

200

Injection Force

mm

132

Diameter Of Plunger

mm

60/65/70

Max Casting Pressure

Bar

467/397/343

Shot Weight

Kg

3.2/3.7/4.3

Max Casting Area

cm²

428/503/583

System Pressure

MPa

14

Motor Power

KW

15

Crucible Capacity(Zn)

Dm³ (kg/zn)

360

Melting Furnace ( oil )

KG/h

4.8

Oil Tank Capacity

            L

300

Weight Of Machine

          Ton

                                  7

Machine Size (L×W×H)

          mm

4000x1400x2200
