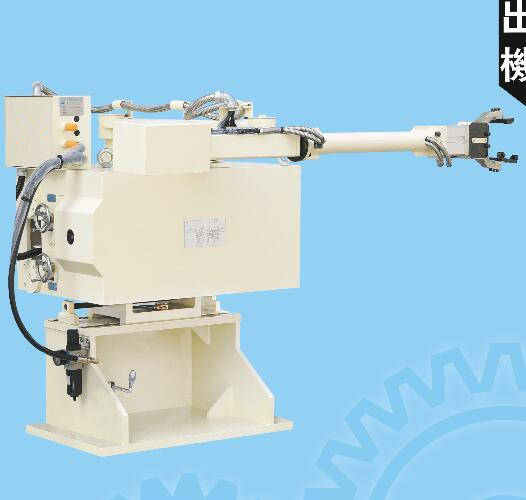

Die Casting Machine Automatic Extractor
Automatic Extractor Specification
|
Model |
ER2 |
ER4 |
|
Suitable Casting Machine |
180-400T |
500-800T |
|
Biscuit diameter |
Ф50-70mm |
Ф80-100mm |
|
Fixed Mould Width |
1100mm |
1450mm |
|
Pulling force |
65kgf |
95kgf |
|
Adjustable distance of pulling direction |
Within 250mm |
Within 400mm |
|
Imput air pressure |
4-6.5kgf/cm² |
|
|
Air pressure inlet |
PT3/8" |
|
|
Casting weight(Max) |
4Kg |
8Kg |
|
Mounting method |
Ground mounting |
|
|
Motor power |
400W |
750W |
|
Power Supplier |
2Ф-380V/220V/DC24V |
|
(1) Adopt good quality components with low failure rate and long service life.
(2) Multi linkage arm has strong loading capacity;working fast and stable without impact.

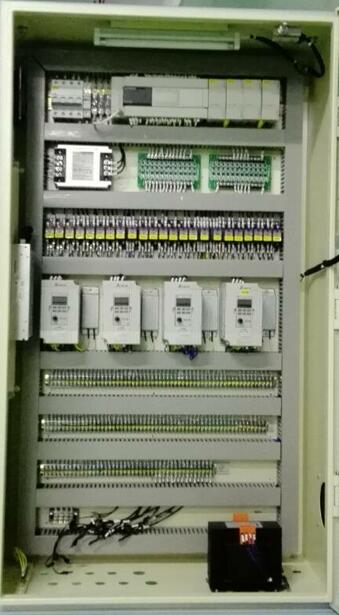

(3) Driven by motor,controlled by frequency converter and PLC;arm has waiting function,which could improve working efficiency.

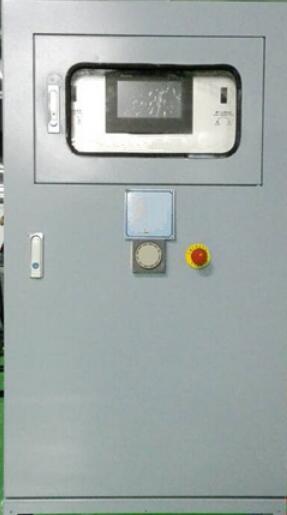

(4) Adopt Mitsubishi PLC and Delta touch screen with stable performance;could supervise every movement,which is convenient for operation and maintenance.
(5) The system is equipped with self diagnosing and failure alarm function for easy removal problems.
