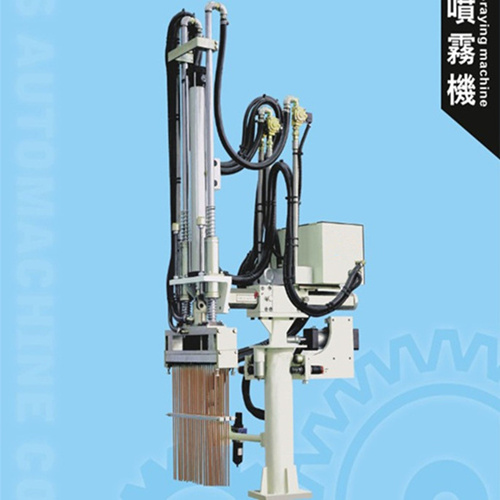

Die Casting Machine Automatic Sprayer

If you have any inquiry,please send email to us directly:
Email:fsweiwei@foxmail.com
Mobile:008613532087643(Mr Newduo)

Description

Die Casting Machine Automatic Sprayer

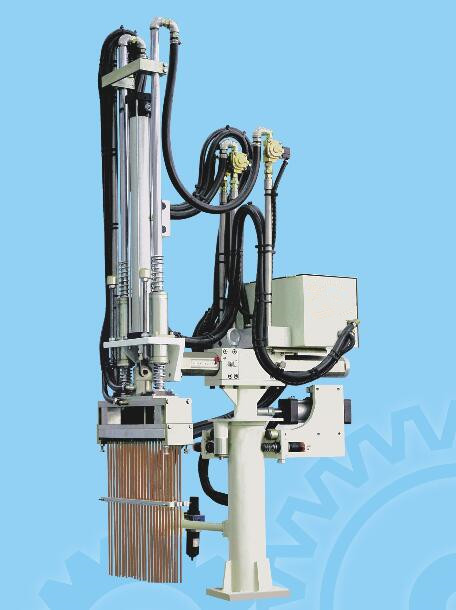

Automatic Spraying Machine.jpg

Automatic Spraying Machine Specification

Specification

SE1

SE4

SE4

SE4

Suitable-die casting machine

150-200T

250-400T

500-630T

700-800T

Copper tube(fixed mold)

26pcs(Ф6)

26pcs(Ф6)

26pcs(Ф6)

26pcs(Ф6)

Copper(moving mold)

26pcs(Ф6)

26pcs(Ф6)

26pcs(Ф6)

26pcs(Ф6)

Input air pressure

4.5-6.5kgf/cm²

Air pressure inlet

PT1"

PT1"

PT11/4"

PT11/4"

Release agent

More than air source pressure

Release agent inlet

3-5.5kgf/cm²

Adjustable horizontal distance

0-400mm

0-650mm

0-650mm

Ascending time

1.0s

1.2s

1.6s

1.8s

Descending time

0.9s

1.0s

1.2s

1.3s

Length of sprayer head

350mm

420mm

480mm

Spraying capacity

About 12.8L

About 12.8L

About 18.2L

Main controller

2Ф-380V/220V/DC24V

Spraying time for release agent

Fixed mold9.9secs(max)&moving mold 9.9secs(max)

Water volum for release agent

Water volum for fixed and moving mold is adjustable

Center distance

Center distance between fixed mold and automizing nozzle is 110+20mm

Machine weight

280KG

355KG

400KG

420KG

Features

1.Sprayer has rotation function for option,which is convenient for mould replacement and avoid copper tube blockage by the spattered material.


2.Spray and blow time for the fixed and moveable platen could be adjusted independent,which could save release agent and improve product quality.


3.Sprayer has blowing function when ascending,which could clean mould surface.

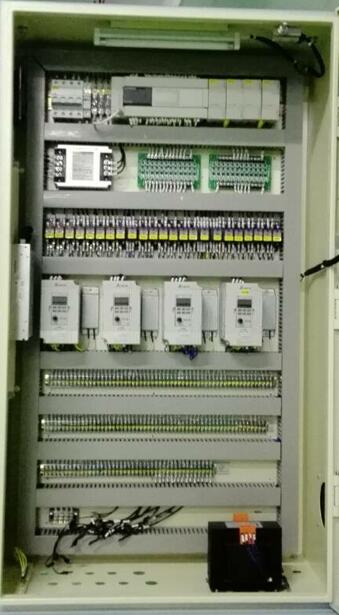

4.Adopt Mitsubishi PLC and Delta touch screen with stable performance;could supervise every movement,which is convenient for operation and maintenance


5.The system is equipped with self diagnosing and failure alarm function for easy removal problems.


die-casting automatic sprayer.JPG
