Servo energy-saving technology is an important breakthrough in the field of die casting machine hydraulic drive. By means of the drive's double close loops,servo drive is used to change speed quickly,so as to realize the change of flow correspondingly. Moreover,the pressure could be adjusted automatically through the output of different torques,which helps to achieve high accuracy,high response and good energy saving effect.

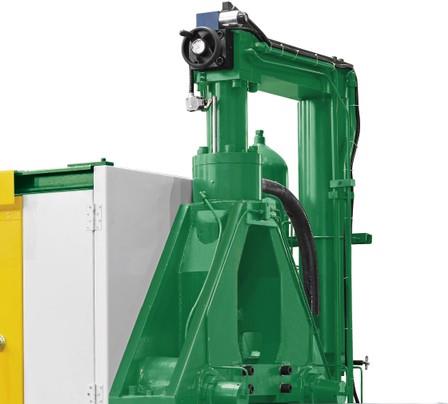

Adopt Weijin unique designed injection system with strong and fast injection force and speed,which could satisfy different kinds of complicated and precision product requirements.

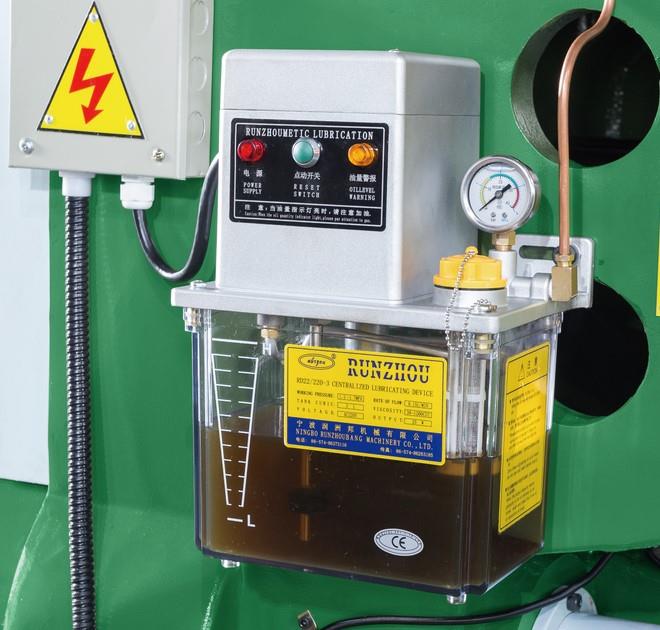

Adopts automatic concentrated lubrication system to improve machine service life and decreases repair times.
Hydraulic drive gear type mould height adjustment with convenient operation and accurate adjustment.

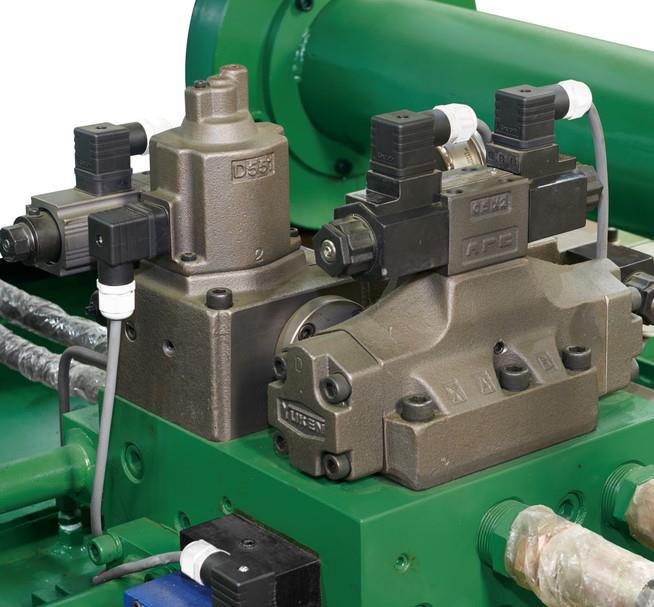

Imported hydraulic valves ensure hydraulic system working stability and excellent performance

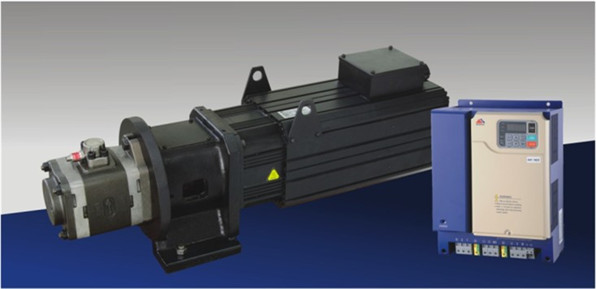

Liquid-cooling Servo Motor(it’s suitable for the dust and moisture bad working environment)
Air-cooling Servo Motor
The energy saving rate of each shot is very high,at least 40% higher than the traditional machines
Servo system can response quickly and the pressure change between 0 to 100% can reach 30ms,which can improve efficiency by 5%-12%
Lower hydraulic oil temperature and reduce the use of cooling water by 30% to prolong the hydraulic components service life
Improve the working environment and decrease noise.

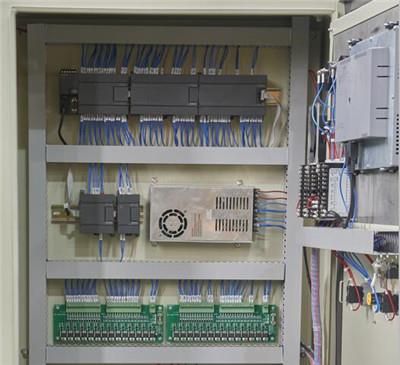

Adopts Siemens/Delta/Omron PLC control system,can control and supervise the date and states of every movement,which is convenient for operation and maintenance.
The system is equipped with self diagnosing and failure alarm function for convenient removal failures

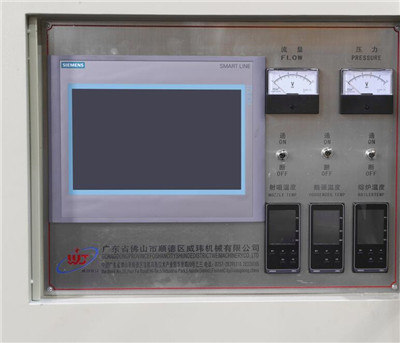

The screen LCD monitor can realize conversion between chinese, english and other language

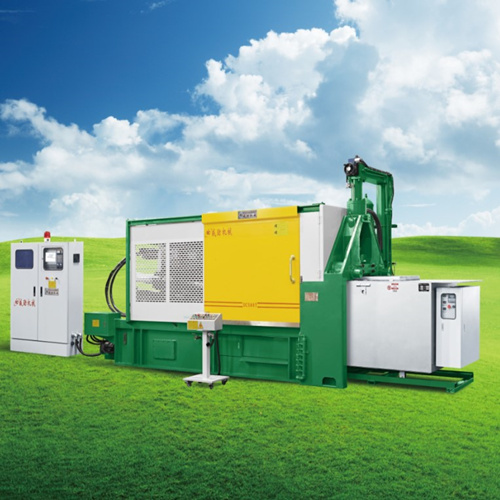

Weijin DC300T Hot Chamber Die Casting Machine Technological Date
ITEM |
Unit |
DC300T |
Clamping Force |
KN |
3000 |
Clamping Stroke |
mm |
460 |
Ejection Force |
KN |
180 |
Ejection Stroke |
mm |
100 |
Die Thickness (Min-Max) |
mm |
250-600 |
Platen Size(HxV) |
mm |
860X870 |
Space Between Tie Bars(W×H) |
mm |
560X560 |
Tie Bar Diameter |
mm |
110 |
Injection Position |
mm |
0/-125 |
Injection Stroke |
KN |
200 |
Traverse Stroke |
mm |
200 |
Injection Force |
mm |
158 |
Diameter Of Plunger |
mm |
70/75/80 |
Max Casting Force |
Bar |
410/357/314 |
Shot Weight |
Dm³ (kg/zn) |
5/5.7/6.5 |
Max Projecting Area |
cm² |
683/784/888 |
System Pressure |
Mpa |
14 |
Motor Power |
KW |
22 |
Crucible Capacity |
Kg |
720 |
Oil Consumption |
Kg/h |
6.3 |
Oil Tank Capacity |
L |
500 |
Weight Of Machine |
Kg |
11 |
Machine Size (L×W×H) |
mm |
5600X1700X2300 |
