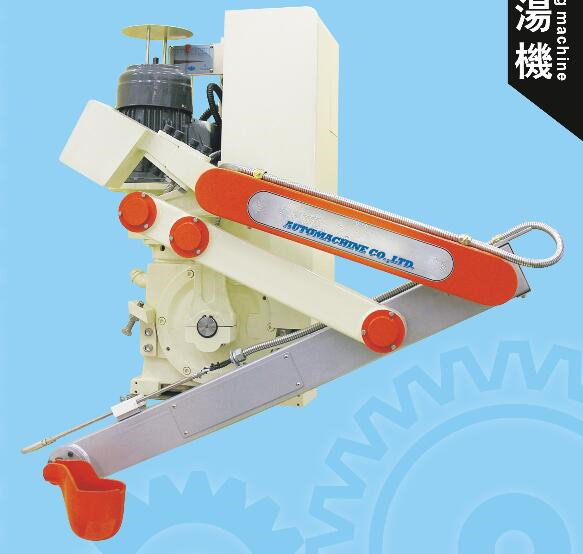

Automatic Ladling Machine Specification
|
Suitable Machine Capacity |
125-400T |
500-800T |
1000-1250T |
|
Pouring Capacity |
1.0-3.5KG |
3.5-8.0KG |
8-15KG |
|
Pouring Accuracy |
±2% |
±2% |
±2% |
|
Cycle Time |
12 sec |
16 sec |
30 sec |
|
Diameter of Crucible |
Above 550mm |
Above 550mm |
Above 800mm |
|
Filling Depth |
Max 350mm |
Max 450mm |
Max 450mm |
|
Power supply arm |
750W4P |
1100W4P |
1500W4P |
|
Power supply dipper |
200W4P |
200W4P |
400W4P |
|
Main controller |
2φ-380V 50-60HZ |
||
|
Operating Power |
DC 24V |
DC 24V |
DC 24V |
|
Power Capacity |
1.5KVA |
1.5KVA |
3.0KVA |
|
Machine Weight |
300KG |
350KG |
400KG |
Features:
(1) With five-point-linkage structure,which ensure high stability,it also increase production output.
(2) The case is mono-block,it great increase the precision of machine
(3) The ladle arm forward/return/and pouring/scooping are controlled seperately by intervers,therebe increasing ladle speed,easy to operate
(4) The linkage model allows the arm to stop smoothly even at high speed,preventing the molten aluminium from easily spilling.

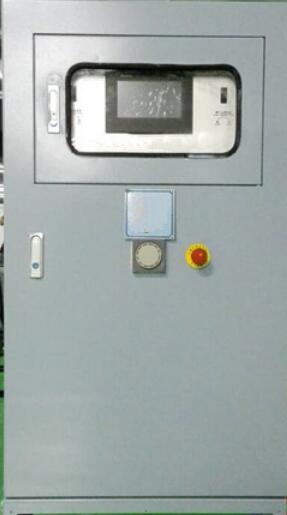

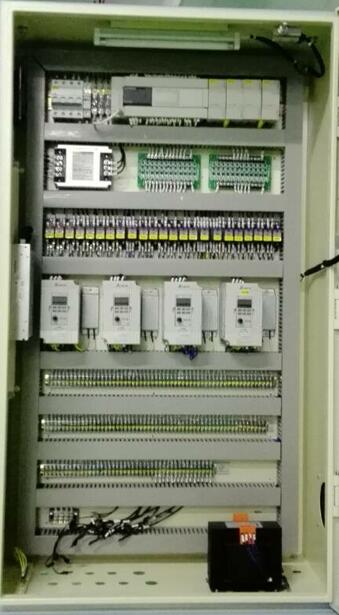

The electric conponants are controlled by PLC with built-in error code display for easier maintence
