Zippier Slider Die Casting Machine

If you have any inquiry,please send email to us directly:
Email:fsweiwei@foxmail.com
Mobile:008613532087643(Mr Newduo)

Description

Adopt optimized and integrated injection system design, which could promote the production effectively.

The material, nozzle body are heated by electricity.The temperature could be held stable to avoid the defective products due to nozzle blockage or temperature change.

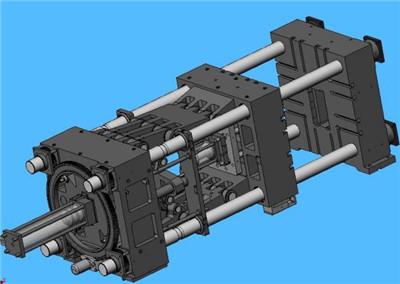

High rigidity die locking system contents with high speed machine.It is impact- resistant and has long service life.

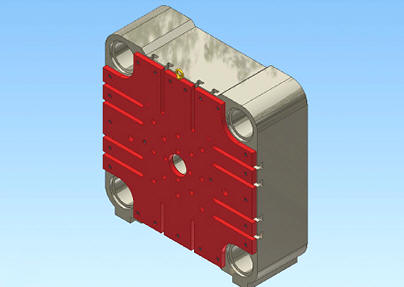

High quality and wear resistance casting platen adopts finite element analysis design that brings even stress distribution to increase die locking precision

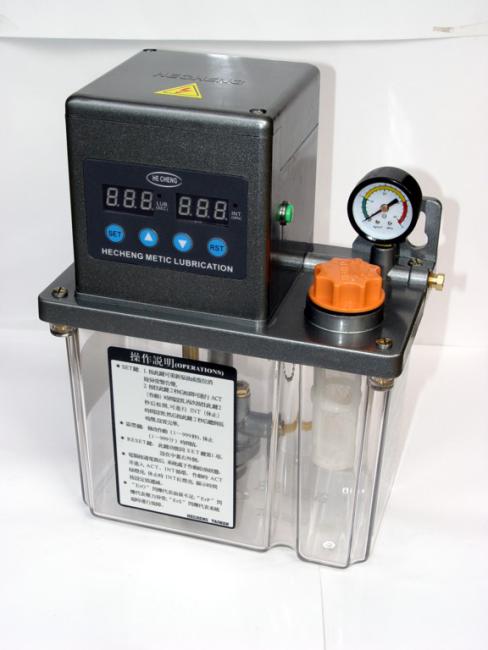

Adopts automatic concentrated lubrication system to improve machine service life and decreases repair times.

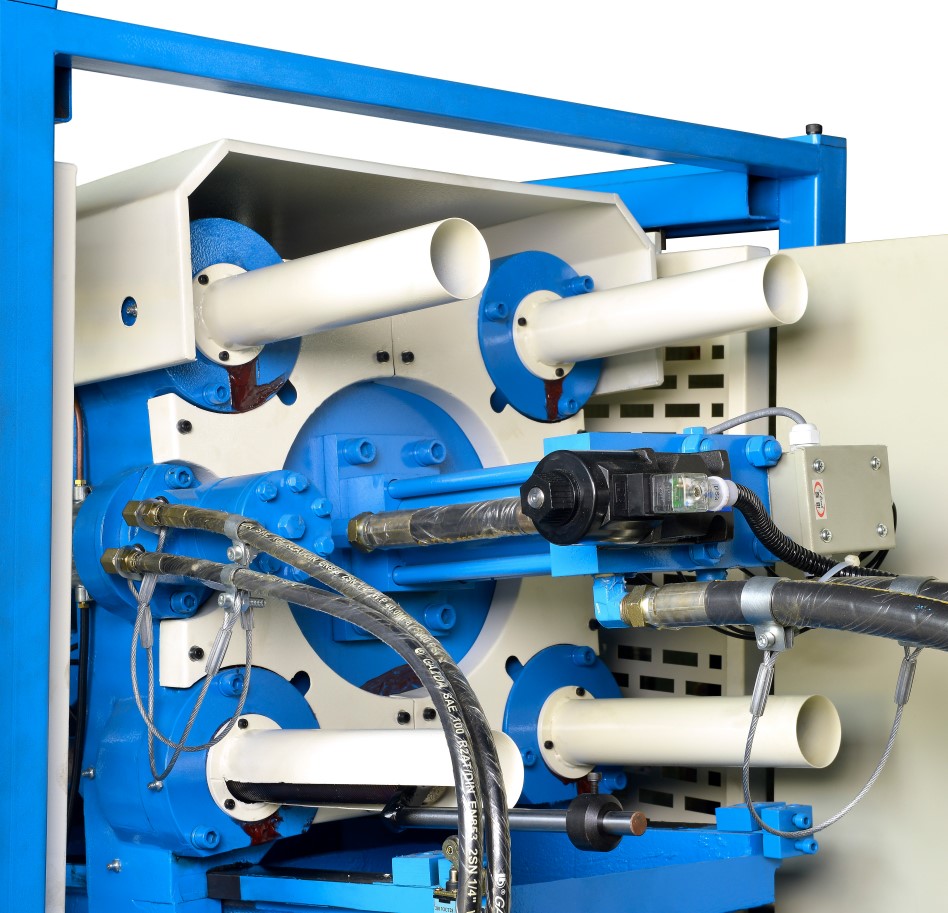

Hydraulic drive gear type mould height adjustment with convenient operation and accurate adjustment.

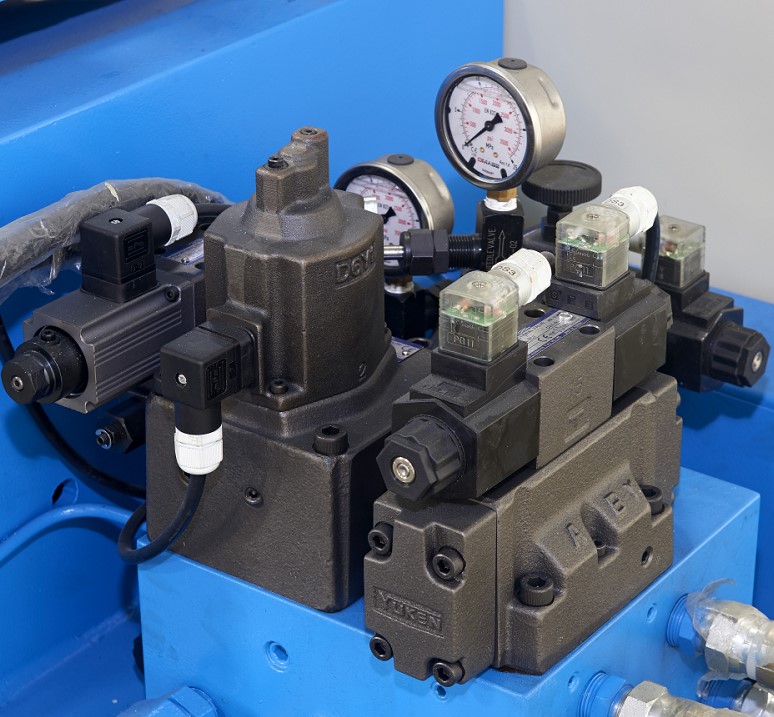

Imported hydraulic valves ensure hydraulic system working stability and excellent performance

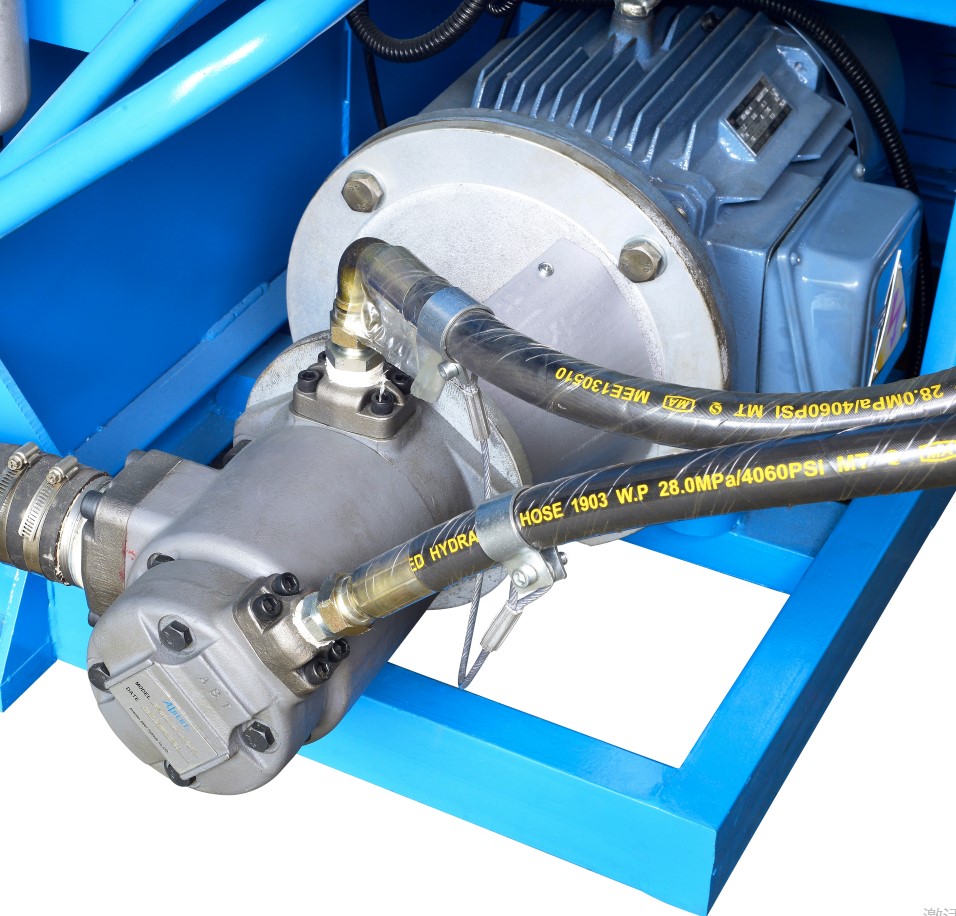

Good quality hydraulic pump control system with high performace and low noise

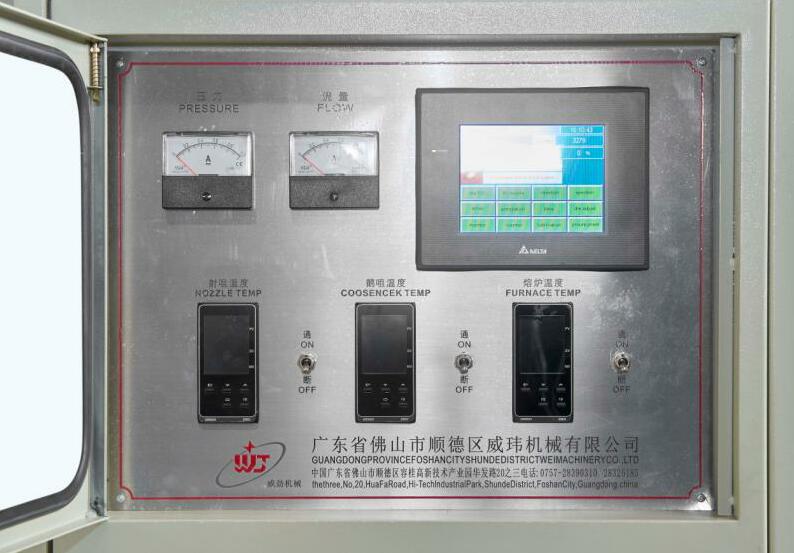

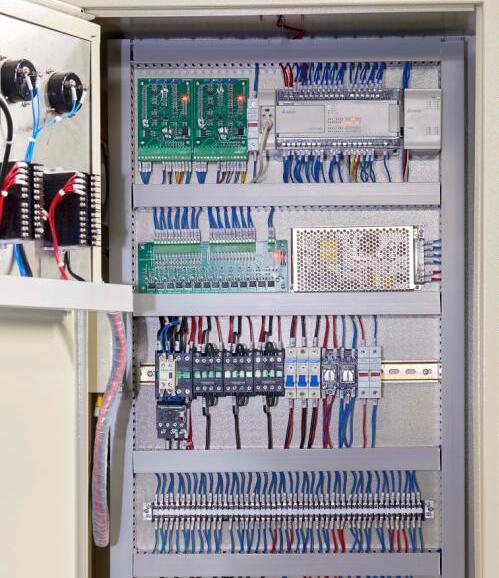

Adopts Siemens/Delta/Omron PLC control system,can control and supervise the date and states of every movement,which is convenient for operation and maintenance.

The system is equipped with self diagnosing and failure alarm function for convenient removal failures

The screen LCD monitor can realize conversion between chinese, english and other language

Weijin DC25T(A) Hot Chamber Die Casting Machine Technogical Date

ITEM	Unit	DC25T(A)
Clamping Force	KN	250
Clamping Stroke	mm	125
Ejection Force	KN	13
Ejection Stroke	mm	40
Die Thickness (Min-Max)	mm	150-220
Platen Size(HxV)	mm	390x368
Space Between Tie Bars(W×H)	mm	278X232
Tie Bar Diameter	mm	40
Injection Position	mm	0
Injection Force	KN	27
Injection Stroke	mm	84
Traverse Stroke	mm	130
Diameter Of Plunger	mm	38
Max Casting Pressure	Bar	238
Shot Weight	Kg	0.6
Max Casting Area	cm²	63
System pressure	Mpa	7
Motor Power	KW	5.5
Crucible Capacity (Zn)	Dm³ (kg/zn)	160
Oil Tank Capacity	L	150
Weight Of Machine	Kg	2100
Machine Size (L×W×H)	mm	2700x1000x1600
