Description

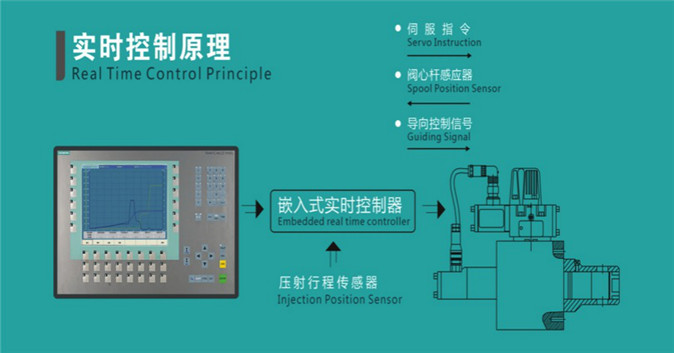

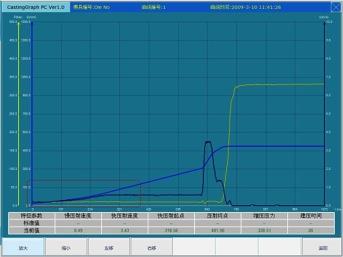

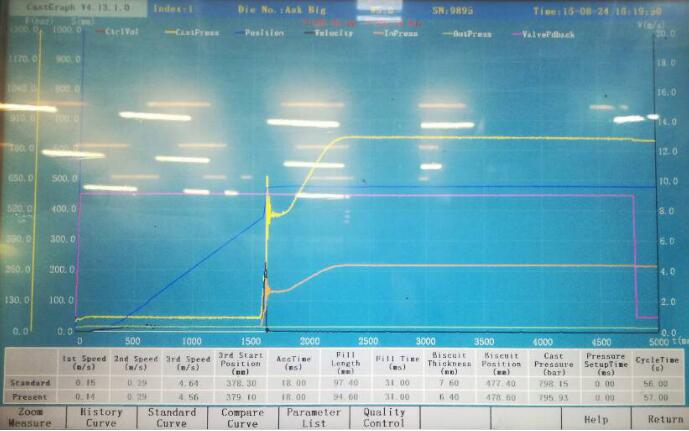

With China's economy globalization,the demand of precise and high quality die casting parts is increasing. In order to solve this problem effectively,Weijin develops the advanced real-time control die casting machine. In addition to the curve display function,the embedded real time control system is also equipped with big-flow electrohydraulic valves,which can feedback the injection speed precisely.The provision of injection speed control curve in different phases,constant acceleration function in low-speed phase,brake function in fast injection phase,could provide customers with powerful die casting control technology and satisfy the complex and high quality die casting production requirement.

Real Time Control Die Casting Machine Advantage

Whole process close loop control to ensure product quality repeatability

Multi-stage speed control to provide flexible process control setting

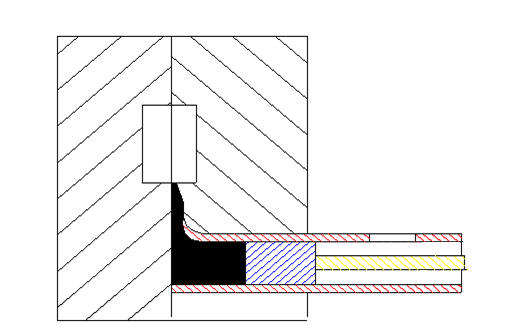

Constant acceleration slow speed injection to reduce porosity defect

High speed end brake function to reduce flash and improve product surface quality

There are 5 stages to control the slow speed

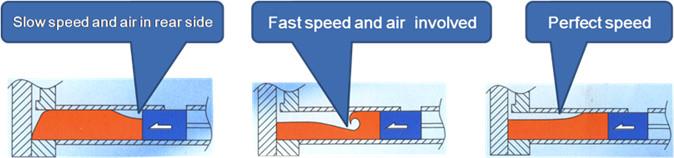

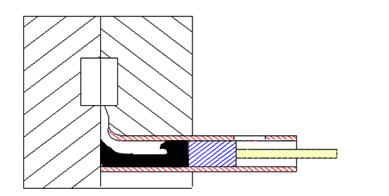

Injection start and slow speed inject no pressure fluctuation to avoid air trapped

Switching time from slow speed to high speed ≤15ms

The shortest speed-raising time to meet the perfect process and reduce the trapped air

The system could provide several deceleration way

High speed brake function to avoid knocking force and flash to prolong mould service life

Weijin DC800T Cold Chamber Die Casting Machine

ITEM	Unit	DC800T
Clamping Force	KN	8000
Clamping Stroke	mm	760
Die Thickness (Min-Max)	mm	400-950
Platen Size(HxV)	mm	1400X1395
Space Between Tie Bars(W×H)	mm	910X910
Tie Bar Diameter	mm	180
Injection Force	KN	665
Injection Stroke	mm	830
Diameter Of Plunger	mm	80/90/100
Shot Weight (Al)	Kg	7.2/9.1/11.2
Casting Pressure (Intensification)	Mpa	132/105/85
Max Casting Area (40Mpa)	cm²	2000
Injection position	mm	0, -140,-280
Plunger Penetration	mm	297
Casting Flange Diameter	mm	210
Casting Flange Protrusion	mm	20
Ejection Force	KN	315
Ejection Stroke	mm	180
System Working Pressure	Mpa	16
Motor Power	Kw	45
Oil Tank Capacity	L	1200
Machine Weight	Ton	39.4
Machine Dimension	mm	9000x2300x3100
