Die Casting Machine Automatic Extractor

Single Arm Servo Sprayer

If you have any inquiry,please send email to us directly:
Email:fsweiwei@foxmail.com
Mobile:008613532087643(Mr Newduo)

Description

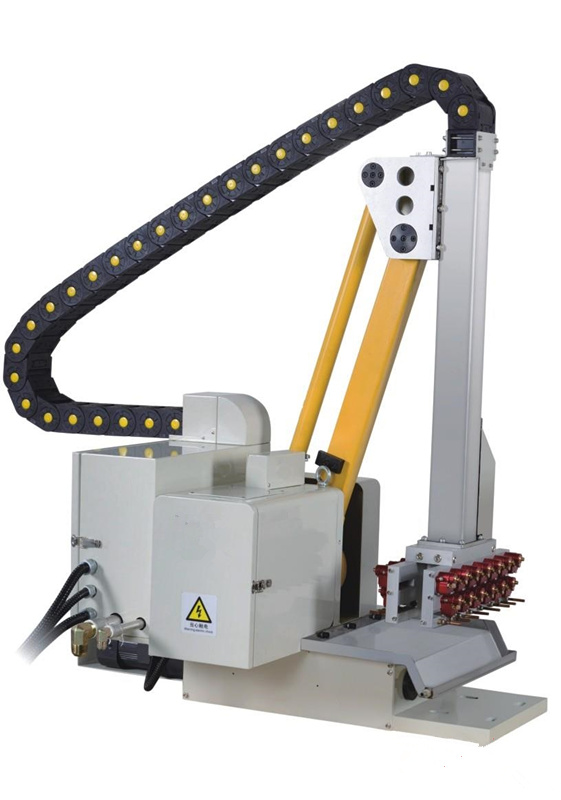

Die Casting Machine Signal Arm Servo Sprayer

Model

SF-2

SF-4

SF-6


Suitable Machine Capacity

    150-400T

500-800T

   1000-1250T


Sprayer heads covered width


     430mm


        600mm


        790mm


Sprayer head thickness


220mm


220mm


240mm


Air pressure


5.5-6.5kgf/cm²


5.5-6.5kgf/cm²


5.5-6.5kgf/cm²


Air pressure inlet


PT1"


PT1/2"


PT1/2"


Base stroke


200mm


350mm


450mm


Stroke from installation level to descending nozzle head end



     -700mm



-1000mm



-1200mm


Ascending time


0.8s


1s


1.2s


Descending time


0.8s


1s


1.2s


Base motor power


180w


180w


180w


Ascending and descending motor power


1kw


1.5kw


2.2kw


Features:

1.Driven by RV reduction gear with high machanical strength,stability and long service life.


2.Could stop at any Y axes position for spraying and blowing


3.Y axes driven by servo motor;could start and stop quickly,stably and precisely


4.Module sprayer with good atomization effect


5.Adopt Mitsubishi PLC and Delta touch screen with stable performance;could supervise every movement,which is convenient for operation and maintenance.


6.The system is equipped with self diagnosing and failure alarm function for easy removal problems.
