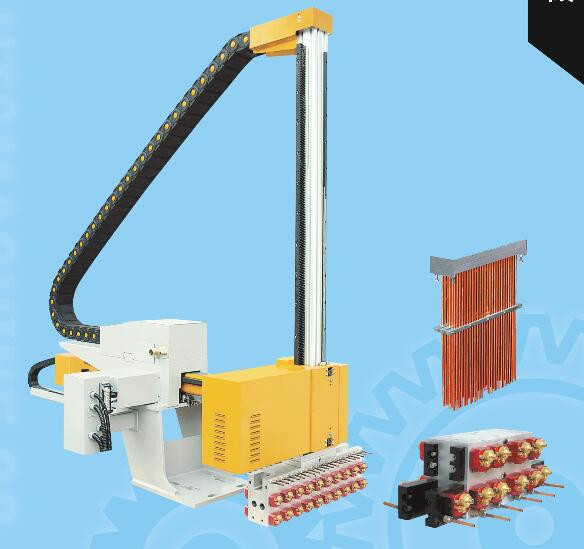

Die Casting Machine Servo Sprayer

If you have any inquiry,please send email to us directly:
Email:fsweiwei@foxmail.com
Mobile:008613532087643(Mr Newduo)

Send Inquiry

Description

Servo Sprayer Specification

Specification

SB2

SB4

SB6

SB8

Suitable-die casting machine

180-400T

500-800T

1000-1250T

1600T

X Axes Length

740mm

1100mm

1300mm

1500mm

X Axes Speed

1.1m/s

Y Axes Length

1100mm

1300mm

1500mm

1700mm

Y Axes Speed

1.0m/s

X Axes Servo Motor

1.0kw

Y Axes Servo Motor

2.0kw

Module Sprayer Head Spray(fixed mold)

12pcs

16pcs

20pcs

Copper(front and back) Blow

12（Ф6）

16（Ф6）

20（Ф6）

Module Sprayer Head(moving mold)

12pcs

16pcs

20pcs

Total Sprayer

24-40pcs

32-40pcs

40-72pcs

Length of copper tubes blow

60mm

Total Length of Module Sprayer head

300mm

400mm

500mm

410mm

Ascending/Descending Time

1.7s

1.35s

1.7s

1.35s

Imput air pressure

5-6kgf/cm²

Air pressure inlet

PT1 1/4"

2PT1 1/4"

Release agent

more than air source pressure

Release agent inlet

PT1 1/2"

Power supply specification

2P-380V/220V/DC24V

Machine(L*W*H)-copper tubes sprayer head

1950*760*2300

2420*100*2420

2600*1160*2338

2650*1160*2850

(1) The spraying volumn of module spray head can be adjusted by single row or separately.

(2) This machine can stop ay any position on the X axes and Y axes for the part spraying and blowing

(3) This machine can spray and blow continuously between the random two position on the X axes and Y axes and repeat

(4) Driven by servo motor,start and stop quickly,working stably and precisely

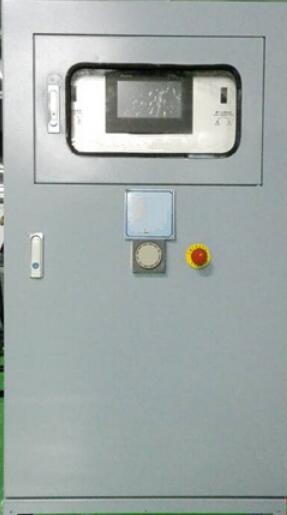

(5) Adopt famous control system,PLC and touch screen,which are reliable and easy to operate.

(6) With error display and explanation for easier maintenance.A mass of mould technics paremeters can be saved

(7) The spraying volumn of module spray head can be adjusted by single row or separately.
